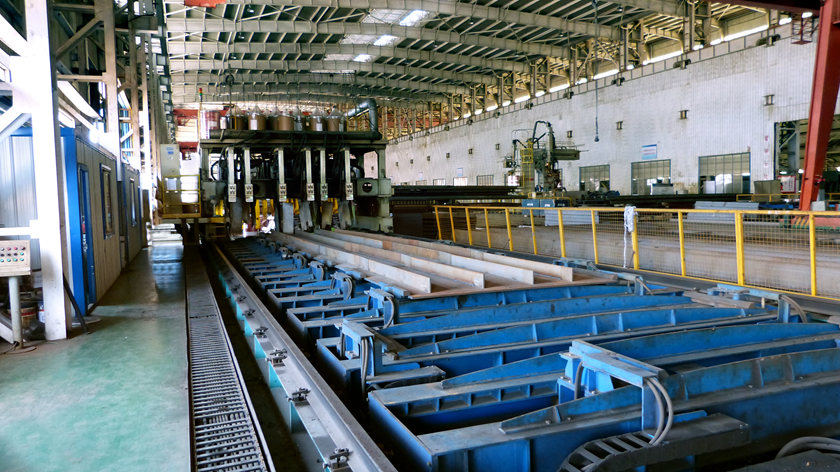

U-ribbed gantry welding machine is a welding U-ribbed unit equipment developed and developed by our factory according to the welding process of fillet weld between U-rib and bottom plate on the U-ribbed unit of steel bridge. This machine is mainly used for special equipment for gas shielded ship-shaped welding between multiple U ribs and the bottom plate at the same time. The machine is compact in structure and easy to operate.
The assembled plate unit is fixed on a welding platform with a reversible angle. The welding seam mechanical tracking device is used to make the welding gun track the welding seam reliably. , Can be set to MIG welding or SAW welding. The welding platform can be set as an anti-deformation tire frame or a flat workbench.
Main technical parameters of U-ribbed gantry welding machine:
Gantry gauge | 7000mm |
Rail length | According to customer needs |
Floor width | 4.5m |
The maximum length of the bottom plate is | 16m |
Floor thickness | 12-40 mm |
U rib thickness | 12mm |
The angle between U rib and bottom plate is | 106 0 |
Bevel angle is | 46 0 , blunt edge 2mm |
Number of U ribs on each floor | 5 roots |
U rib center distance | 600-800mm. |
Workpiece material | Q370 |
